HWL Drill Rods 3m

HWLDrill Rods Overview

* Material : 4130

* Tubing

• High quality alloy steel tubing

• Consistent concentricity, straightness and heat treatment

• All tubing available in DCDMA sizes

* Thread

• Tapered, course threads (3 threads per inch) provides easy make and break

• Load efficiency of 30% provides sufficient strength for average applications

* Thru-wall Heat Treatment

• Provides 140% material strength

• Heat treated box threads significantly increases thread wear life

* Case Hardening

• Significant research, development and field testing have resulted in a hardening process that is unequalled.

• Pin thread crest is hardened to nominal 55 HRC to eliminate damaging ‘adhesion’ wear

• Eliminates the transfer of wear material back and forth which is what happens between threads of equal hardness, leading to large scalegalling and joint seizing

Attention: Do not mix our drill rods with another manufacturer, it may causecatastrophic accident.

Note: For making sure the performance of the drill rods, never mix our rods with any another manufacturer’s rods together, also it may cause machinery failures and catastrophic accident.

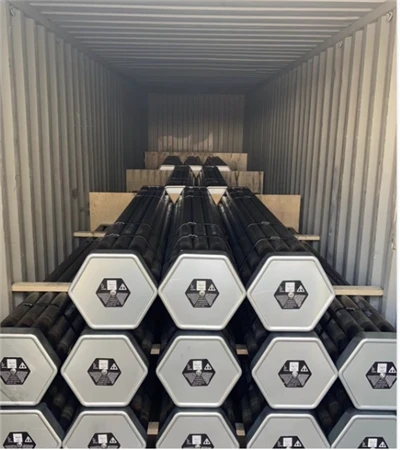

Packing Details

HWL (HCQ) Drill Rods Bundle Specifications

* 20 ft container load of 3.0 m/10 ft drill rods holds 20 bundles (380 rods)

* 40 ft container load of 3.0 m/10 ft drill rods holds 30 bundles (570 rods)
