Surface Diamond Core Drill Rig SX16 NQ 1250m

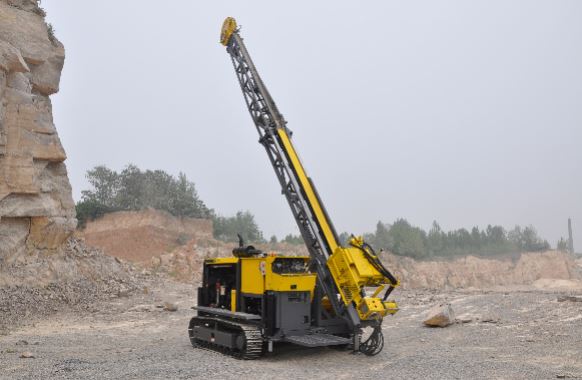

SX16 Surface Diamond Core Drilling Rig

The SX16 Surface core-drilling rig is designed for various drilling operations featuring a long-stoke direct feed system, a low-emission T3 engine and a powerful main winch. It is considered to be one of the most productive deep-hole drills in its class offering high-standard reliability and productivity.

The proved capacity comes from the upgraded power pack and hydraulic system, as well as the hoisting devices and mechanical structures.

The dump must, hydraulic leveling jacks and foldable mast make the SX16 fast to set up. The optional radio control crawler track enables the drill to maneuver easily on the site and keeps the operator in a safety distance. The standard safety guards and E-stop buttons make the rig user-friendly and safe to operate.

Features

· Dump mast -- creates a stable working platform and lowers the working height dramatically.

· New Telescope mast -- Easy setup and capable of 6m rod pulls while being compact size for transportation.

· Hydraulic leveling jacks and mast raising cylinders -- make the rig easy to set up.

· Canadian-origin Christensen chuck and rotation unit -- offers high expectation for performance and reliability.

· Hydraulic rod holder – provides fast action of rod clamping, improved reliability and reduced service need.

· Radio control crawler track – Enhanced mobility and safety.

Drilling Capacity

B wireline 1540m

N wireline 1250m

H wireline 780m

P wireline 480m

* Depth are based on vertical hole *

Main Hoist

Single line capacity:Bare drum 80 kN

Line speed:Bare drum 40 m/min

Cable size:35 m x 16 mm

WireLine

Capacity:1800 m of 6 mm WL

1000 m of 7 mm WL

Line pull:bare drum: 11,9 kN

Full drum: 3.0 kN

Line speed: bare drum 114 m/min

Full drum 453 m/min

Mast and Feed System

Feed travel: 3,5 m

Feed speeds: fast and slow, variable control

Thrust: 59.6 kN

Pull: 138 kN

Drilling angle: 45 to 90 degrees
Rod pull length: 6.09 m

Power Unit

Manufacture: Cummins

Model: QSB6.7 Tier III

Volume: 6.7 liter 6 cyl.

Power: 153 kW

RPM: 1800

Engine type: Diesel turbocharged, water cooling

Electrical system: 24 V (Alternator 24 V, 95Amp)

Hydraulic System:

Primary pump: 28 MPa – 280 l/min

Secondary pump: 20 MPa – 170 l/min

Auxiliary pump: 21,5 MPa – 55 l/min

Hydraulic oil cooling: Air

Drillhead and Spindle Speeds

Power: hydraulic motor ,variable

Speed/Reverse 4

Final drive: Silent chain driven, 2:5 ratio

Spindle 117 mm (ID)

Spindle speed: 117-1300 rpm

Torque: Max 5113 Nm

Head: Swing away (optional to side shifting)

Crawler Option

Control method Radio Remote Controlled

Speed Max speed 3 km/h

Track type Heavy duty, 300 mm track shoe

Chuck Assembly

Type: Hydraulic open, spring closed

Max inside diameter: 117 mm

Holding capacity: 18 143 kg

Rod Holder

Type: Hydraulic open, gas spring closed

Max inside diameter: 210 mm

Holding capacity: 15 000 kg

Drill Base Supports

Trailer mounted rig 4 x 770 mm wheels

Support: 4 hydraulic jacks

Pad diameter: 200 / 230 mm

Travel length: 550 mm

Weight

Wheel type: 7000 kg (Not available for DH)

Crawler mounted 9000 kg

Dimensions ( Transport / Work Site)

A : 5150 mm

B : 2700 mm

C : 2340 mm

D : 9650 mm
