Aw Awj Awy High Quality Wireline Drill Pipe Drill Rod

We are constantly consolidating the domestic market at the same time, PDC Bit, Reaming Shells, Surface Set Diamond Core Drill Bit are also exported to many countries and regions. Our company abides by contractual commitments on product quality and various services, and is willing to sincerely cooperate with new and old customers around the world. We always pursue the most perfect after-sales service, constantly improve the customer response mechanism, and reflect the professional, timely and warm service purpose. We have realized the transformation from family business to corporate family, from local internationalization to international localization.

CGET's DCDMA series wireline drill rod is made from superior quality tubing material. The drill rods are manufactured under strict quality control and are processed with high technology. All of our drill rods are supplied with heat treated rod ends, hardened to HRC 30 - 35 throughout the wall thickness to a length of 200mm.

* DCDMA Series Wireline Drill Rods: BCQ(BQ), NCQ(NQ), HCQ(HQ), PCQ(PQ) Drill Rods

* Standard wireline drill rods length are 1.5m or 3.0m, but other lengths can be made on request.

Wireline Drill Rods Sizes Available

Our RCQ thread drill rods have the same performance with the RQ rods ( NRQ/ HRQ rods) from BLY.
Note: Q and RQ is the trademark from Boart Longyear, here we quoted for helping customer to select the rods only.

Features and Advantages
* Material : 4130

* Tubing
• High quality alloy steel tubing
• Consistent concentricity, straightness and heat treatment
• All tubing available in DCDMA sizes

* Thread
• Tapered, course threads (3 threads per inch) provides easy make and break
• Load efficiency of 30% provides sufficient strength for average applications

* Thru-wall Heat Treatment
• Provides 140% material strength
• Heat treated box threads significantly increases thread wear life

* Case Hardening
• Significant research, development and field testing have resulted in a hardening process that is unequalled.
• Pin thread crest is hardened to nominal 55 HRC to eliminate damaging adhesion wear
• Eliminates the transfer of wear material back and forth which is what happens between threads of equal hardness, leading to large scale galling and joint seizing

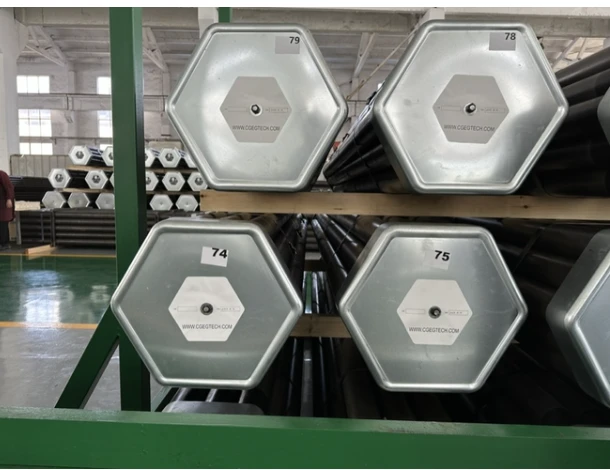

Packing Details
BQ (BCQ) Wireline Drill Rods Bundle Specifications

20 ft container load of 3.0 m/10 ft rods holds 53 bundles (1007 rods)
40 ft container load of 3.0 m/10 ft rods holds 68 bundles (1292 rods)

NCQ/NRCQ (NQ/NRQ) Wireline Drill Rods Bundle Specifications

20 ft container load of 3.0 m/10 ft rods holds 30 bundles (570 rods)
40 ft container load of 3.0 m/10 ft rods holds 45 bundles (855 rods)

HCQ/HRCQ (HQ/HRQ)Wireline Drill Rods Bundle Specifications

20 ft container load of 3.0 m/10 ft rods holds 20 bundles (380 rods)
40 ft container load of 3.0 m/10 ft rods holds 30 bundles (570 rods)

PHD/PQ Wireline Drill Rods Bundle Specifications

20 ft container load of 3.0 m/10 ft rods holds 30 bundles (210 rods)
40 ft container load of 3.0 m/10 ft rods holds 45 bundles (315 rods)
