Foundation Bored Piling Drilling Tools Core Barrel

Accurate evaluation of product function utility is the key for manufacturers to produce marketable PDC Bit, Wireline Coring Drill Rod, Impregnated Drill Bits. We have laid a strong material foundation and accumulated rich practical experience. Our company advocates a corporate culture of unity, innovation, and people-oriented. We will further strengthen and standardize the construction of advanced enterprise culture with characteristics.

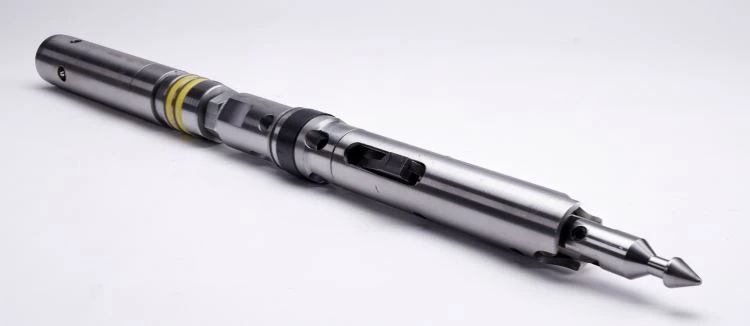

WL Wireline core barrels are the ideal solution for wireline coring, it can be used in most drilling conditions, We can provide B Core Barrel/ N Core Barrel/ H Core Barrel/ P Core Barrel standard DCDMA oles sizes are available for your selection.

GEO EQUIP TECH WUXI ( CGET) provide four models of the wireline core barrel systems:
* Standard wireline system (B N H P);
* Triple tube wireline system ( N3 H3 P3);
* Underground wireline system(NU HU);
* Thin Wall wireline system (BTW NTW HTW).

1. Standard Wireline System PWL consists of core barrels and overshot assembly, there are the integral to the wireline system, normally we divided them into two assemblies:

Inner Tube Assembly:

1). Head assembly (#1-39)
2). Inner Tube (#40)
3). Stop Ring (#41)
4). Core Lifter(#42)
5). Core Lifter Case(#43)

Main Components Weight:
1).Head Assembly(#1-39): 29kg
2). Inner Tube Assembly 3m: 43kg
3). Inner Tube Assembly 1.5m: 55kg
4). Core Barrel Assembly 3m(#1-40): 95 kg
5).Core Barrel Assembly 1.5m(#1-40): 119.8 kg

Options:
* #40 Inner tube here it is 3m, 1.5m is an alternative.
* #47 Outer tube here it is 3m, 1.5m is an alternative.
* #44 Locking Coupling, we provided customized service.
* #42 Slotted core liter is an alternative.

2. Triple Tube Wireline System P3 has the same assemblies as standard P sizes, but use a third split tube placed inside of the inner tube. This design is very useful for integral core recovery when drilling coal, clay or highly broken formations, the split tube retains the core sample safely to avoiding flushing. Triple tube wireline system is only available in N3, H3 and P3.

We are searching ahead towards your visit for Foundation Bored Piling Drilling Tools Core Barrel. Our products are sold after many inspections by an excellent technical team, and the quality of the products is trustworthy. We will continue to carry forward the business philosophy of 'standards start from precision work, service comes from sincerity', and develop together with new and old customers and peers at home and abroad.
