Multi-string cutter

Multi-string cutter

Functions Integrated design, robust lifespan with few repair parts. When you need it, it will be there.
Used for cutting BW casing and NAU drill rods at any point in the hole when whole rod string can't be retrieved.
Send Inquiry
Product Introduction

The organization keeps for the procedure concept 'scientific administration, superior quality and effectiveness primacy, shopper supreme for Wireline Drill Rods, NQ Reaming Shell, Drill Bits Reaming Shells. We effectively improve the quality of development and corporate competitiveness, and comprehensively accelerate the conversion of new and old kinetic energy. We are committed to developing our core technologies to play a driving role in the industry and supporting the sustainable development of the company. We adhere to both economic and environmental benefits, and take the road of sustainable development.

Integrated design, robust lifespan with few repair parts. When you need it, it will be there.


BW Casing Cutters
BW Casing Cutters

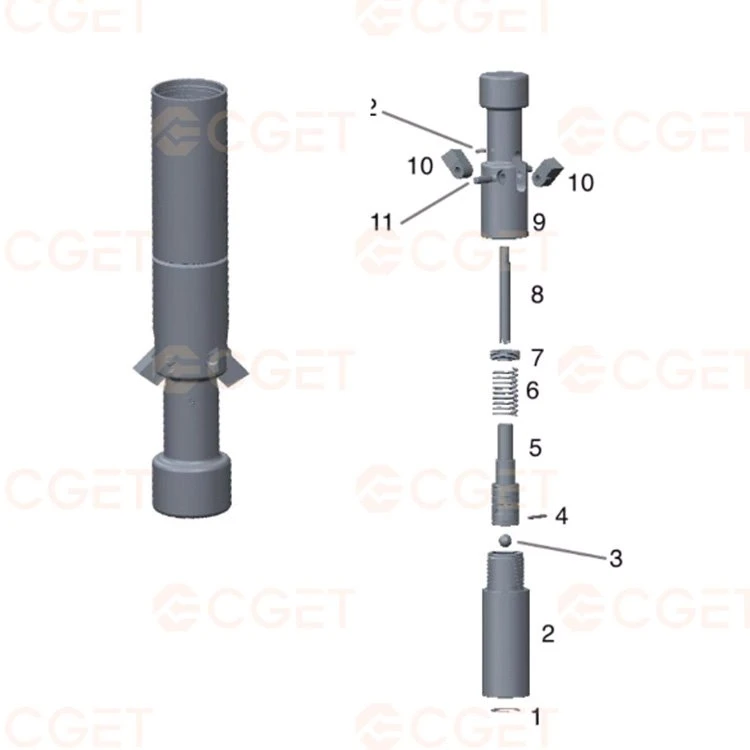

BW Casing/ Rod Cutter Assembly


1-12

BWC12

BW Casing/ N Rod Cutter assembly


No.

P/N

Product Name

Oty

1

BWC-01

Retaining Ring

1

2

BWC-02

Plunger Case

1

3

BWC-03

Stainless Steel Ball

1

4

BWC-04

Pin

1

5

BWC-05

Punger

1

6

BWC-06

Spring

1

7

BWC-07

Spring Rest

1

8

BWC-08

Water Tube

1

9

BWC-09

Body

1

10

BWC-10

Casing Cutter Lug

2

11

BWC-11

Casing Cutter Pin

2


Functions
1. Used for cutting BW casing and NAU drill rods at any point in the hole when whole rod string can't be retrieved.
2. BAU/BQ rod box connection


NW Casing Cutter
NW Casing Cutters

NW Casing/ HQ Rod Cutter Assembly

1-12

NWC12

NW Casing/ H Rod Cutter assembly


No

P/N

Product Name

Oty

1

NWC-01

Retaining Ring

1

2

NWC-02

Plunger Case

1

3

NWC-03

Stainless Steel Ball

1

4

NWC-04

Pin

1

5

NWC-05

Punger

1

6

NWC-06

Spring

1

7

NWC-07

Spring Rest

1

8

NWC-08

Water Tube

1

9

NWC-09

Body

1

10

NWC-10

Casing Cutter Lug

2

11

NWC-11

Casing Cutter Pin

2


Functions:
1. Used for cutting NW casing and HAU drill rods at any point in the hole when whole rod string can't be retrieved.
2. NAU/NQ rod box connection


HW Casing Cutter
HW Casing Cutters

HW Casing/ PQ Rod Cutter Assembly

1-12

HWC8

HW Casing/ PHD Rod Cutter assembly


No

P/N

Product Name

Oty

1

HWC-01

Stainless Steel Ball

1

2

HWC-02

Plunger

1

3

HWC-03

Pin

1

4

HWC-04

Spring

1

5

HWC-05

Retaining Ring

1

6

HWC-06

Body

1

7

HWC-07

Casing Cutter Lug

2

8

HWC-08

Spring Pin

2


Functions:
1. Used for cutting HW casing and PHD drill rods at any point in the hole when whole rod string can't be retrieved.
2. HAU/HQ rod box connection


Our Multi-string cutter have exquisite manufacturing technology and excellent technology. All kinds of products are carefully made according to strict design procedures and scientific technological process. The overall development strategy of our company is formulated and implemented by combining our own resources and characteristics of the external market situation. We take a multi-faceted approach to customer satisfaction, developing targeted products and providing individualized one-stop solutions that better match the actual application.
