Nq Wireline Core Barrel Complete

By strictly implementing our production process, we will continue to improve the quality of our H Core Barrel, Reamer Shell, Impregnated Diamond Core Drill Bit and meet the needs of our customers as always. We are looking forward to cooperating with more clients worldwide for common development and mutual benefit! We closely follow the development trend of the industry and strive to keep pace with the development of the world. We attach importance to product research and development and technological innovation.

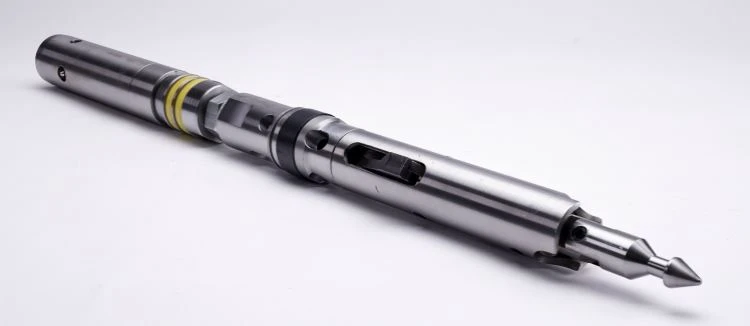

WL Wireline core barrels are the ideal solution for wireline coring, it can be used in most drilling conditions, We can provide B Core Barrel/ N Core Barrel/ H Core Barrel/ P Core Barrel standard DCDM holes sizes are available for your selection.

GEO EQUIP TECH WUXI ( CGET) provide four models of the wireline core barrel systems:

* Standard wireline system (B N H P);
* Triple tube wireline system ( N3 H3 P3);
* Underground wireline system(NU HU);
* Thin Wall wireline system (BTW NTW HTW).

1. Standard Wireline System BWL consists of B core barrels and overshot assembly, there are the integral to the wireline system, normally we divided them into two assemblies:

Inner Tube Assembly:

1). Head assembly (#1-31)
2). Inner Tube (#32)
3). Stop Ring (#33)
4). Core Lifter(#34)
5). Core Lifter Case(#35)

Main Components Weight:
1). Head Assembly(#1-31): 5.2kg
2). Inner Tube Assembly 3m: 12.7kg
3). Inner Tube Assembly 1.5m: 9.5kg
4). Core Barrel Assembly 3m(#1-40): 39.5kg
5). Core Barrel Assembly 1.5m(#1-40): 24.4kg

Options:
* #32 Inner tube1.5m is an alternative.
* #39 Outer tube here it is 3m, 1.5m is an alternative.
* #36 Locking Coupling, we provided customized service.
* #34 Slotted core liter is an alternative.

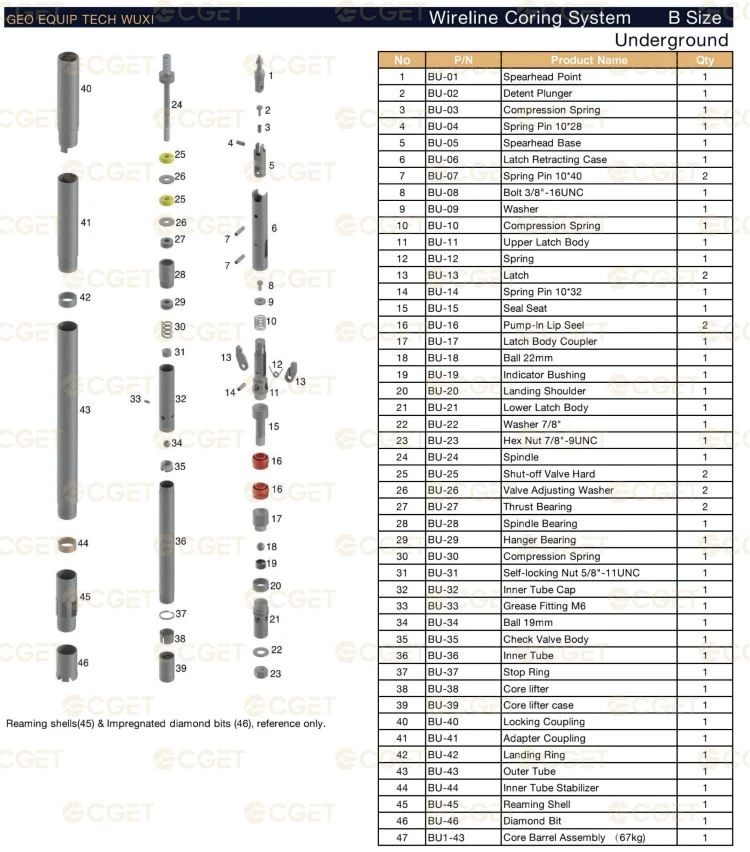

2. Underground Wireline System consist of the same assemblies as standard B, N , H and P size system, they are design for suitable the conditions of underground drilling, contact our sales representative to know more.

Inner Tube Assembly:
1). Head assembly (#1-35)
2). Inner Tube (#36)
3). Stop Ring (#37)
4). Core Lifter(#38)
5). Core Lifter Case(#39)

Options:
* #36 Inner tube1.5m is an alternative.
* #43 Outer tube here it is 3m, 1.5m is an alternative.
* #40 Locking Coupling, we provided customized service.
* #38 Slotted core liter is an alternative.

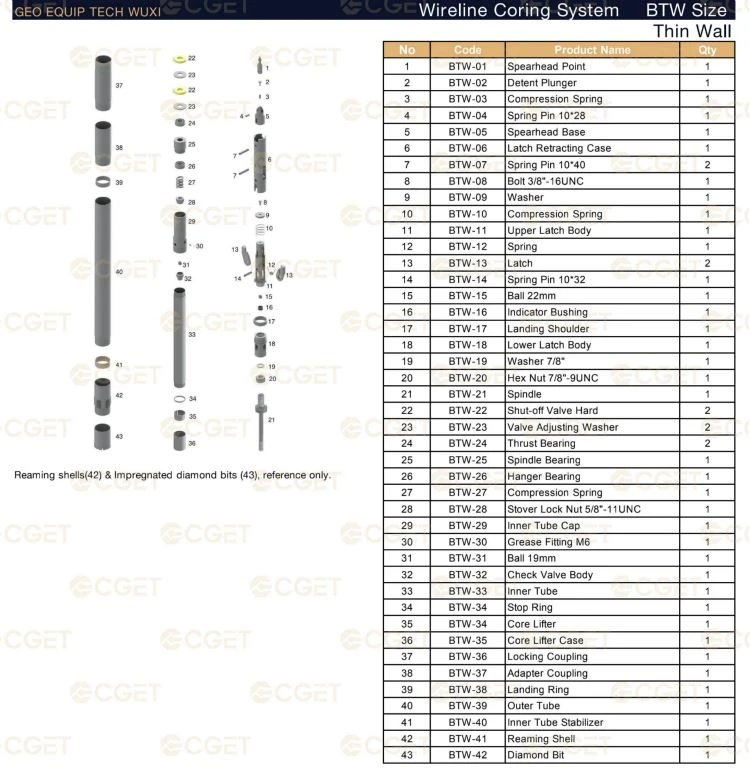

3. Thin Wall Wireline System BTW is ideal and optimized for larger core sample retrieving but don’t need the change the hole size, our thin wall system are with simple design, most of the parts are interchangeable with WL series core barrels.

Inner Tube Assembly:
1). Head assembly (#1-32)
2). Inner Tube (#33)
3). Core Lifter(#35)
4). Core Lifter Case(#36)

Options:
* #33 Inner tube1.5m is an alternative.
* #40 Outer tube 1.5m is an alternative.
* #37 Locking Coupling, we provided customized service.
* #35 Slotted core liter is an alternative.

How To Order
Contact our sales representative for a recommendation.
WhatsApp: +89-189 2131 0502
E-mail: sales@cgegtech.com
