Water Swivel (BQ NQ HQ PQ)
Our company's Reamer Shell, Drilling Rigs, Wireline Drill Rods pay attention to details and quality, and strictly abide by the high standards of the international market. We strive to build a comprehensive business system and hope to become a leading force in the construction of the industry. Under the leadership of the company' s leaders, we are moving towards industrialization and internationalization with a new attitude, and we will make unremitting efforts to build the brand into a first-class domestic brand.
CGET has many years experience in manufacturing wireline core drilling parts such as water swivel, ezy lock overshot, casing cutters, hoisting plug, adaptor subs and so on. Water swivel is manufactured with prssure-sealed ball bearings, precision machined stainless steel spindles, and light weight aluminum bodies. It is suitable for any type of drilling equipment and available with different threads and mountings. It is applied to supplying high water, coolant, or air through the center of your diamond drills.
Features of Water Swivel
* High performance and longevity: made with precision ground shafts.
* Adopt high quality materials and thread attachments.
* Self-adjusting position of the seal is ensured by wear-proof washover pipe and the spring-mounted load, increased hoisting capacity
* Convenient smaller size
* Lightweight for easy transport
Available Size for Water Swivel
BQ, HQ, NQ, 25K, 40K, compact plus water swivels are available. We offer universal water swivels for diamond core drills, size of our water swivels can be order-made according to clients' needs.

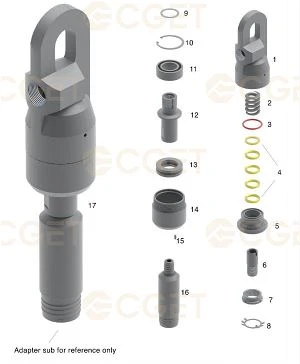

25K Universal Water Swivel
No | P/N | Product Name | Oty |
1 | WSG-01 | Swivel Cap | 1 |
2 | WSG-02 | Compression Spring | 1 |
3 | WSG-03 | O-ring Ф57*5.5 | 1 |
4 | WSG-04 | Swivel Packing | 1 |
5 | WSG-05 | Packing Housing | 1 |
6 | WSG-06 | Spindle Extension | 1 |
7 | WSG-07 | Spindle Nut | 1 |
8 | WSG-08 | Lock Washer | 1 |
9 | WSG-09 | Spacer | 1 |
10 | WSG-10 | Retaining Ring | 1 |
11 | WSG-11 | Ball Bearing 3210 | 1 |
12 | WSG-12 | Spindle | 1 |
13 | WSG-13 | Ball Thrust Bearing 51211 | 1 |
14 | WSG-14 | Swivel Body | 1 |
15 | WSG-15 | Grease Fitting M6 | 1 |
16 | WSG-16 | Adaptor Sub ( Reference Only ) | 1 |
17 | WSG-17 | Surface Universal Water Swivel | 1 |
Note:
a. #20 NPT hose connection
b. BW tod box spindle connection for swivel body
c. Surface universal water swivel weight: 12.7kg

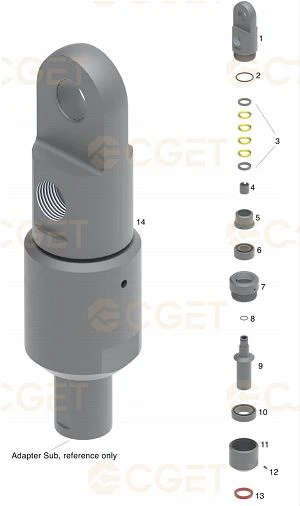

Compact Plus Water Swivel
| No | P/N | Product Name | Oty |
1 | CCP-01 | Swivel Cap | 1 |
2 | CCP-02 | O-ring Φ47.5*3.55 | 1 |
3 | CCP-03 | Upper Pressure Ring | 1 |
4 | CCP-04 | Wear Sleeve | 1 |
5 | CCP-05 | Packing Cage | 1 |
6 | CCP-06 | Ball Bearing 3206A-2Z | 1 |
7 | CCP-07 | Upper Swivel Body | 1 |
8 | CCP-08 | O-ring Φ19*2.65 | 1 |
9 | CCP-09 | Spindle | 1 |
10 | CCP-10 | Thrust Bearing 51209 | 1 |
11 | CCP-11 | Swivel Body | 1 |
12 | CCP-12 | Grease Fitting M6 | 1 |
13 | CCP-13 | Felt Seal | 1 |
14 | CCP-14 | Surface Compact Plus Water Swivel | 1 |
Note:
a. #16 NPT hose connection
b. AW rod box spindle connection
c. Surface compact plus water swivel weight: 7.8kg
How To Order
Contact our sales representative for a recommendation.
WhatsApp: +89-189 2131 0502
Mobile: +86-152 5025 4719
E-mail: sales@cgegtech.com
With persistent craftsman spirit, advanced technology, excellent quality and perfect service, we continue to provide customers with satisfactory Water Swivel (BQ NQ HQ PQ). The company has a good research and development environment, strong technical force and professional manufacturing equipment. We insist on the concept of respecting talents and creation, and do not focus on education but ability, and diploma but level.
